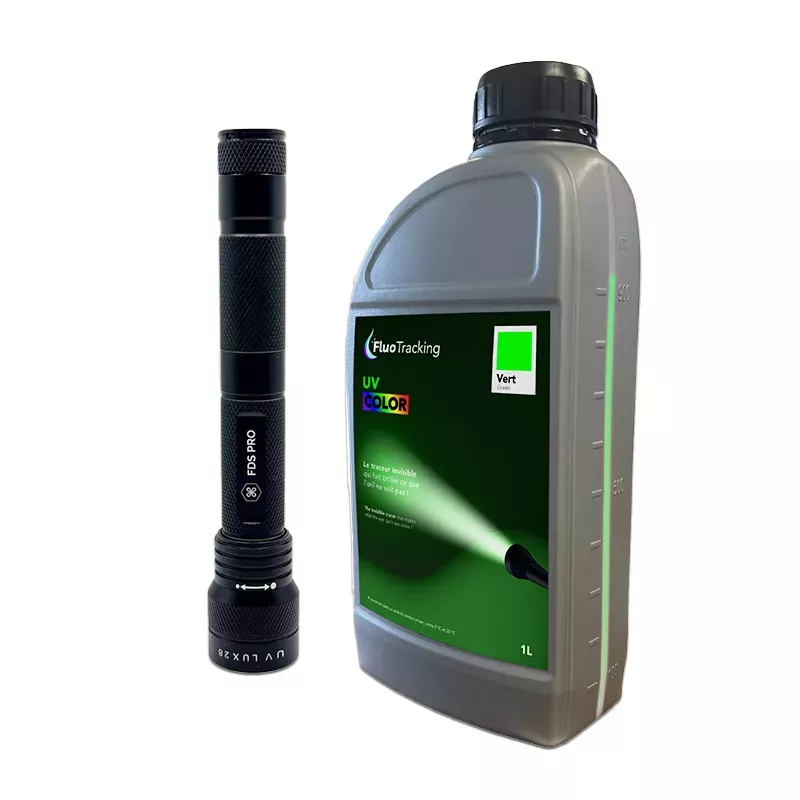

LUX 28 UV lamp kit + COLOR UV dye

LUX 28 UV lamp + UV COLOR pack: the ultimate solution for leak detection

This complete pack combines two essential tools for all professionals involved in inspection, tracing, and non-destructive diagnostics: the LUX 28 UV lamp and the UV COLOR dye. Together, they offer a fast, clean and extremely effective detection method for revealing water leaks, infiltrations or sealing failures, even in hard-to-reach areas. Why choose this UV pack? 1. A professional UV lamp designed for the field

The LUX 28 UV lamp projects 365 nm ultraviolet light with an impressive power of up to 28,000 µW/cm². It immediately reveals traces of UV dye, even on uneven or dark surfaces. Light as a feather (85g), it is designed to fit comfortably in your hand during long inspection sessions without causing fatigue. Its beam is adjustable, allowing you to adjust the inspection area as needed. It operates on two easily replaceable AA batteries, providing approximately 1.5 hours of continuous use. Its maneuverability and compact size make it ideal for hard-to-reach areas or quick inspections on roofs, under sinks, in utility rooms, or in narrow pipes.

2. A high-performance, discreet, and effective UV dye

Invisible to the naked eye, COLOR UV dye is unique in that it only reacts when exposed to ultraviolet light. This allows you to work cleanly, without staining or soiling surfaces after inspection. The recommended dilution of 1 to 3% in water makes it both economical and easy to measure out. A few drops are enough for immediately visible results. Another advantage is that UV COLOR dye leaves no residue after rinsing, making it ideal for sensitive surfaces such as bathroom joints, swimming pool coatings, and industrial materials. Choice of colors: green, red, purple, blue, yellow.

Technical specifications of the LUX 28 UV lamp

• Wavelength: 365 nm (perfectly suited to fluorescent tracers)
• Power: up to 28,000 µW/cm²
• Power supply: 2 AA batteries
• Battery life: approx. 1.5 hours in continuous use
• Weight: 85 grams

Supplied with:

• 1 LUX 28 UV lamp
• 1 hard carrying case
• 1 pair of protective goggles
• 1 charger
• 1 1L UV COLOR container of your choice

Instructions: how to use the UV pack effectively?

1. Prepare your equipment

Make sure you have the following items: UV COLOR dye, LUX 28 UV lamp, a container of water, an injection tool (pipette, syringe or watering can, depending on use) and UV protective goggles.

2. Dilute the UV COLOR dye

Pour between 1 and 3% of dye into the water depending on the size of the area to be inspected and the viewing distance. For example, for 1 L of water, add between 10 and 30 ml of dye. Mix thoroughly to obtain a homogeneous solution.

3. Apply the solution to the area to be tested

Depending on the application (network, roof, basin, etc.), pour or inject the solution directly into the circuit or onto the target surface. Ensure that the solution circulates or remains in the areas where leaks are suspected.

4. Leave to act for a few minutes

Allow the solution to spread throughout the inspected area for 5 to 15 minutes. This allows the dye to penetrate microcracks or leak points.

5. Inspect under UV light

Switch on the LUX 28 UV lamp in darkness or low light. Point the beam at the treated area. Leaks will immediately appear as a fluorescent halo (green, red, purple, blue or yellow depending on the color chosen).

🔎 Order now to save time on your diagnostics Your work deserves a reliable, accurate and immediately available tool.

Choose the color of your tracer and receive your ready-to-use kit.
